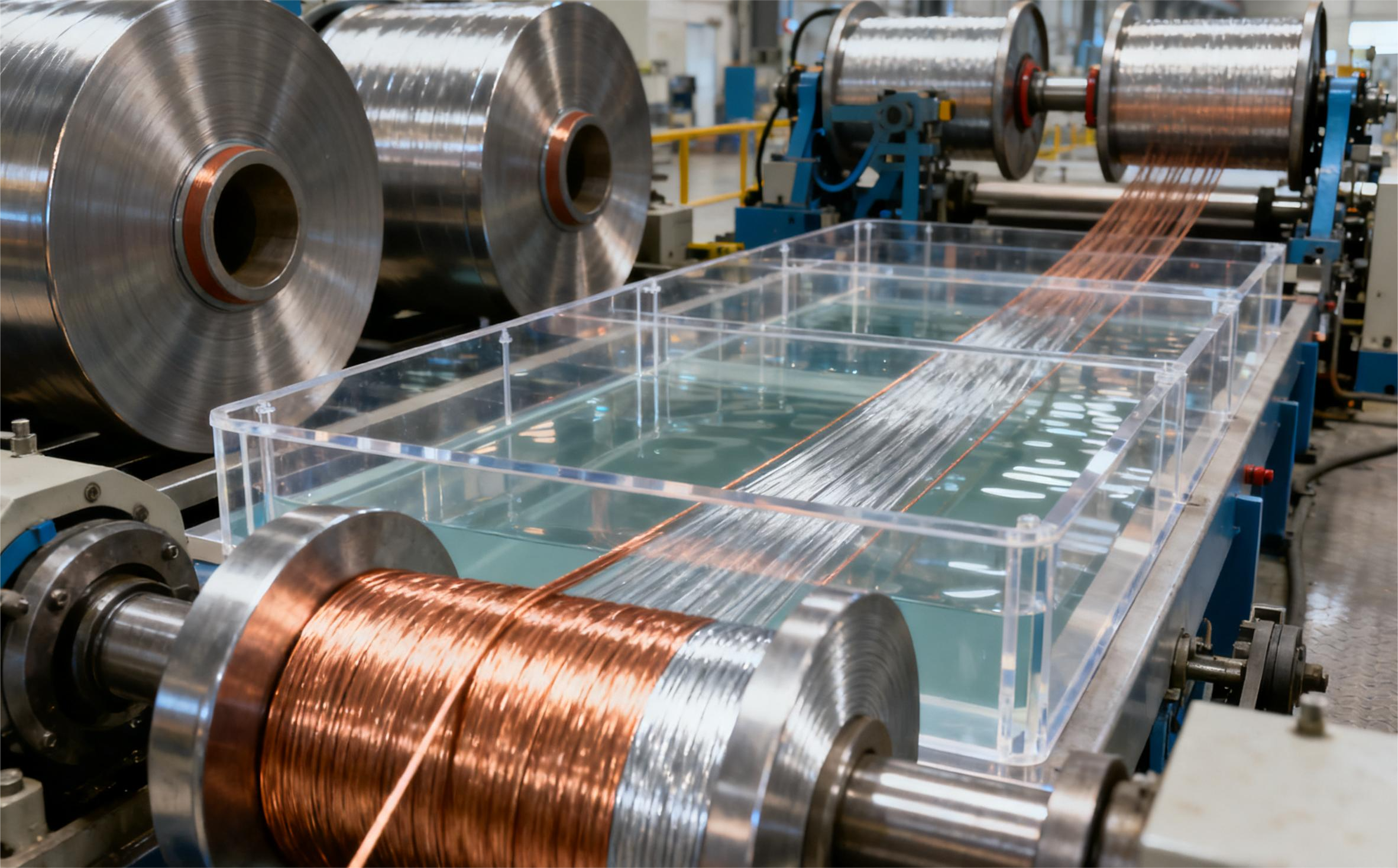

A wire drawing machine is a vital piece of industrial equipment used to reduce the diameter of metal wires by pulling them through a series of drawing dies. It is an essential tool in the metal processing, manufacturing, and electrical industries—playing a central role in producing materials like copper wire, aluminum wire, stainless steel wire, and carbon steel wire.

Despite its efficiency and precision, the wire drawing machine also has inherent limitations. These limitations arise due to mechanical constraints, material behavior, production costs, and technological boundaries. Understanding these weaknesses is critical for manufacturers who aim to optimize production, enhance product quality, and minimize downtime.

In this comprehensive guide, we will explore the limitations of a wire drawing machine, analyze their causes, discuss potential solutions, and provide data-driven insights.

Key Takeaways

• A wire drawing machine is used to reduce wire diameter through mechanical pulling via drawing dies.

• Despite being highly efficient, it faces limitations related to material properties, machine design, friction, temperature control, and die wear.

• Understanding the mechanical, operational, and economic constraints can improve wire drawing productivity and quality.

• Regular maintenance, lubrication, and process optimization can significantly reduce these limitations.

Understanding the Wire Drawing Process

Before exploring the limitations, it's essential to understand how a wire drawing machine works.

A wire drawing machine operates by pulling a metal rod or wire through a die, which gradually reduces its diameter and increases its length. The process is typically divided into multiple stages, each corresponding to a reduction in size. The operation requires high tensile force, precise control, and adequate lubrication to prevent overheating or wire breakage.

Typical Components of a Wire Drawing Machine

Mechanical Limitations of Wire Drawing Machines

1. Die Wear and Tear

Drawing dies are among the most critical components of a wire drawing machine. They are typically made of tungsten carbide, polycrystalline diamond (PCD), or natural diamond. Over time, repeated drawing causes die wear, resulting in inaccurate wire diameters, surface roughness, and reduced production efficiency.

Data Insight:
Studies show that die wear contributes up to 30% of total downtime in high-speed wire drawing operations.

Solutions:

• Use PCD dies for fine wire drawing and tungsten carbide dies for heavy-duty operations.

• Implement die rotation systems to ensure uniform wear.

• Schedule preventive die inspection and polishing routines.

2. Friction and Lubrication Issues

Friction between the wire and die generates excessive heat, which can cause wire breakage, oxidation, or microcracks. Improper lubrication is a major cause of these issues.

Fact:
A well-maintained lubrication system can extend die life by 40% and reduce power consumption by 15%.

3. Mechanical Fatigue and Vibration

High-speed wire drawing machines are prone to vibrations, especially when dealing with hard metals like stainless steel or high-carbon wire. These vibrations can lead to mechanical fatigue in components like capstans, shafts, and bearings.

Consequences:

• Wire ovality (non-uniform cross-section)

• Reduced machine life

• Noise and instability

Solutions:

• Employ dynamic balancing on rotating components.

• Use anti-vibration mounts and servo-controlled tension systems.

• Regularly inspect motor alignment and belt tension.

4. Limited Reduction Ratio per Pass

Each drawing pass can only reduce the wire diameter by a certain percentage (typically 15–30%) before the wire becomes too hard to continue drawing. This is known as the reduction ratio limit.

If the reduction exceeds the material's plastic deformation limit, the wire can crack or snap.

Solution:
Use intermediate annealing between passes to restore ductility.

Material Limitations in Wire Drawing

1. Work Hardening

As the wire is drawn, it undergoes strain hardening, making it stronger but less ductile. Overdrawing can cause brittleness and surface cracking.

Example:
Stainless steel wire can increase in tensile strength by up to 50% after multiple drawing stages, but its elongation decreases significantly.

Solution:

• Use annealing furnaces for periodic heat treatment.

• Optimize draw pass schedules to balance strength and flexibility.

2. Surface Defects and Microcracks

Improper die design, lubrication failure, or excessive drawing speed can lead to surface scoring, microcracks, or die lines. These defects affect electrical conductivity and mechanical performance.

Detection Methods:

• Eddy current testing for surface cracks.

• Optical inspection systems for online monitoring.

3. Limited Material Types

Not all metals are suitable for drawing. Brittle materials like cast iron or high-carbon steel have poor drawability. The wire drawing machine is most efficient for ductile metals such as copper, aluminum, and low-carbon steel.

Operational Limitations of Wire Drawing Machines

1. High Energy Consumption

Wire drawing is a high-torque, high-speed process that demands considerable electrical energy. A typical multi-pass machine can consume between 100–300 kWh per ton of wire.

Energy-Saving Tips:

• Install variable frequency drives (VFDs).

• Improve lubrication efficiency to reduce frictional losses.

• Recover waste heat from annealing furnaces.

2. Maintenance Complexity

Due to the number of mechanical components, wire drawing machines require regular maintenance. Unscheduled downtime caused by worn-out dies, motor faults, or lubrication failure can severely impact productivity.

Preventive Maintenance Checklist:

• Inspect dies and capstans weekly.

• Clean cooling and filtration systems.

• Calibrate tension control units monthly.

3. Limited Automation in Older Models

Traditional mechanical wire drawing machines rely heavily on manual operation. This increases labor costs and reduces process consistency.

Modern digital control systems now include:

• Automatic die change units

• Tension feedback systems

• AI-based defect detection

However, upgrading older machines to these technologies can be expensive and may not always be compatible with legacy hardware.

Technological Limitations and Challenges

1. Temperature Control

Heat buildup in dies and wires can affect surface quality and material structure. Overheating leads to oxidation, color variation, or loss of mechanical strength.

2. Die Material and Cost Constraints

High-quality PCD dies offer longer life but are significantly more expensive than tungsten carbide dies. For high-volume production, this creates a trade-off between cost and longevity.

3. Difficulty in Handling Ultra-Fine Wires

Drawing wires below 0.05 mm in diameter is challenging due to increased die friction, wire vibration, and breakage risk. The precision required for ultra-fine drawing demands:

• High-precision dies

• Stable temperature control

• Vibration-free operation

4. Environmental and Noise Concerns

Wire drawing operations generate noise (above 85 dB) and waste lubricant, leading to environmental and workplace safety concerns.

Mitigation Strategies:

• Implement closed-loop lubrication systems.

• Use noise-dampening enclosures.

• Switch to biodegradable lubricants.

Economic Limitations

1. High Initial Investment

Modern multi-pass wire drawing machines with automation and cooling systems can cost between $50,000–$300,000, depending on capacity and configuration. For small manufacturers, this poses a significant financial barrier.

2. Production Cost Comparison

3. Downtime and Yield Loss

Every minute of unplanned downtime in large-scale wire drawing plants can result in losses of $500–$2000, depending on production volume and wire grade.

Smart factories are increasingly adopting IoT-based predictive maintenance systems to minimize downtime.

Conclusion

The wire drawing machine remains indispensable in the metal manufacturing industry, enabling the production of wires with exceptional dimensional accuracy and surface quality. However, it faces several limitations—including die wear, friction, energy consumption, vibration, and high operating costs.

In essence, while the wire drawing machine has mechanical and material boundaries, continuous technological innovation is rapidly redefining those limits, driving the industry toward smarter, greener, and more efficient production.

FAQs

Q1: What is the maximum reduction ratio achievable in a wire drawing machine?
A: Typically, a reduction ratio of 20–30% per pass is safe, depending on the metal's ductility and die configuration.

Q2: Why do wire drawing dies wear out so quickly?
A: Continuous friction and high temperatures during drawing cause abrasive wear and surface fatigue of the dies.

Q3: How can I reduce wire breakage in my wire drawing machine?
A: Ensure proper lubrication, maintain die alignment, and avoid excessive reduction per pass.

Q4: What type of wire drawing machine is best for stainless steel wire?
A: A non-slip wet wire drawing machine is recommended due to its superior cooling and surface protection capabilities.
